Hot Dipped Galvanized Round Steel Pipe/gi Pipe Pre Galvanized Steel Pipe Galvanised Tube For

FOB Reference Price:Get Latest Price
$700.00 - $900.00 / Tons | 5 Ton/Tons high quality steel angle (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
10*10mm-200*200mm
Grade:
Q195-Q420 Series
Place of Origin:
Qinghai, China (Mainland)
Brand Name:
Ma steel,An steel,Tangshan steel
Model Number:
25MM*25MM-250MM*250MM
Type:
Equal
Application:
Building Construction
Technique:
hot rolled
Length:
6-12m, or cut as your needs.
strength of extension:
A36//420MPa S355JR/485MPa
yield strength:
A36/235-260MPa S355JR/360-420MPa
elongation:
A36//26min S355JR/26min
carbon content:
A36//C(0.12-0.20)% S355JR/C(0.12-0.20)%
manganese content:
A36//Mn(0.45)% S355JR/Mn(1.35)%
silicon content:
A36//Si(≥0.19)% S355JR/Si(≥0.002)%
Product name:
steel angle standard sizes in inches
Material:
Q195-Q235
Supply Ability
Supply Ability:
5000 Ton/Tons per Month high quality steel angle
Packaging & Delivery
Packaging Details
Steel angle bars packaging:
1Big OD:in bulk
2Small OD:packed by steel strips
3woven cloth with 7 slats
4according to the requirements of customers
Port
Shanghai, Ningbo, Tianjin, Dalian, Lianyungang ,Shenzhen, Rizhao
Lead Time :
Shipped in 7 days after payment

Product Description

Carbon/galvanized Steel Angles Material Astm A36 A572 High Quality Steel Angle

Product
Hot Dipped Galvanized Round Steel Pipe/gi Pipe Pre Galvanized Steel Pipe Galvanised Tube For
Size
20#~250#(Check all size we can provide as equal angle steel size list shown below)
Thickness
3mm~35mm
Length
6M/9M/10M/12M, OR Cut as your demands
Technique
Cold Drawn/ Cold Pilfered/ Cold Rolled/ Hot Rolled/ Forged
Other processing service
Hot dip Galvanized, Pre-galvanized, Color Painting, Coated, Cutting, Bending,
Punching as long as you can tell us your requirement.

Offer Standards
ASTMA53/ASTM A573/ASTM A 283/ASTM A36
BS1387-1985/BS EN10025/BS970
GB/T3091-2001, GB/T13793-92, ISO630/E235B/
JIS G3101/JIS G3136/JIS G3106
DIN17100/DIN 1.0038/DIN1025-5
Materials
A36
Q235/Q235B/Q345/Q345B/
S235JR/S235/S355JR/S355/ST37-2/ST52-3/
SS400/SM400A/SM400B/SS490/SM490/SS540
stainless: 200/300/400 series
MTC Report or any other requested test can be offered together with shipping document
PAYMENT TERMS :
1.100% irrevocable L/C at sight.
2.30% T/T prepaid and the balance against the copy of B/L.
3.30% T/T prepaid and the balance against L/C
Brand
Jinxi steel ,Ma Steel,Laiwu steel,Rizhao steel,Tang Steel

 Certificate

ISO, SGS, CE, CQC and third part inspection.





Steel Angle Sizes

  high quality steel angle

Equal Angle Steel Sizes
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
Size
(MM)
Weight
(KG/M)
25*31.12470*55.397100*1217.898160*1024.729200*2573.600
25*41.45970*66.406100*1623.257160*1229.391220*1653.901
30*31.37370*77.398110*813.532160*1433.987220*1860.250
30*41.78670*88.373110*1016.690160*1638.581220*2066.533
40*31.85275*55.818110*1219.782175*1231.800220*2272.751
40*42.42275*66.905110*1422.809175*1539.400220*2478.902
40*52.97675*77.976120*1221.666180*1233.159220*2684.987
50*43.05975*89.03120*1018.370180*1438.382250*1868.956
50*53.77075*1011.089120*1221.666180*1643.542250*2076.180
50*64.46580*67.376125*815.504180*1848.634250*2490.433
60*54.52080*1011.874125*1019.133200*1442.894250*2593.770
60*65.42090*810.946125*1222.696200*1545.300250*2697.461
63*43.90790*1013.476125*1426.193200*1648.680250*28104.422
63*54.82290*1215.940140*1021.488200*1854.401250*30111.318
63*65.721100*812.276140*1225.522200*2060.056250*32118.149
63*87.469100*1015.120140*1429.490200*2471.168250*35128.271



Unequal Angle Steel Sizes

Size
(MM)

Theoretical weight
(KG/M)

SIZE
(MM)

Theoretical weight
(KG/M)

SIZE
(MM)

Theoretical weight
(KG/M)

125*75*710.700100*80*1013.476180*110*1634.649
125*75*812.200110*70*68.350200*125*1229.761
125*75*913.600110*70*79.656200*125*1434.436
125*75*1015.000110*70*810.946200*125*1639.045
125*75*1217.800110*70*1013.476200*125*1843.588
45*30*42.251125*80*711.066200*125*2047.885
50*32*42.494125*80*812.551100*75*68.060
56*36*42.818125*80*1015.474100*75*79.340
63*40*53.466125*80*1218.330100*75*810.600
63*40*63.920140*90*814.160100*75*911.800
75*50*54.638140*90*1017.475100*75*1013.000
75*50*64.808140*90*1220.724100*75*1215.350
75*50*85.699140*90*1423.908150*90*814.700
90*56*67.431160*100*1019.872150*90*916.400
90*56*86.717160*100*1223.592150*90*1018.200
100*63*68.779160*100*1427.035150*90*1221.600
100*63*87.550160*100*1630.835200*100*1023.000
100*63*109.878180*110*1022.273200*100*1227.620
100*80*612.142180*110*1226.464200*100*1530.040
100*80*810.946180*110*1430.589





Steel Grades





Standard Equivalent

China
GB/T,YB

America
ASTM

Japan
JIS

Germany
DIN EN

England
BS EN

France
NF EN

ISO

Korea
KS

India
IS

Q195

Grade B



SS330
SPHC

S185(1.0035)

E185
Fe(310)



D

Q215

Grade C
CS Type B



SS330
(SS34)

Fe-330

Q235-A

Grade D

SS400

S235JR (1.0038)

E235 A
E235 B
E235 C
E235 D

SS400
(SS41)



Q235-B

S235J0(1.0114)

Fe-410

Q235-C

S235J2(1.0117)

Q235-D



S235JR(1.0038)

Q275

SS Grade
40 (275 )

SS490

S275JR(1.0044)
S275J0(1.0143)
S275J2(1.0145)

E275
(Fe430)

SS490

Fe-490

Q345-A

Grade
50 (345)

SPFC590

E355(1.0060)

E355





Q345-B

S355JR(1.0045)



Q345-C

S355J0(1.0553)



Q345-D

S355J2(1.0577)



Q345-E

S355NL(1.0546)







Packing & Delivery



Packing
1.By steel strips in bundles
2.By woven cloth with 7 slats
3.By woodenn pallet
4.Accorging to the requirements of customers
Delivery
By sea
1.In bulk ( based on 200tons)
2.20ft container: 25tons (Length limted 5.8m MAX)
3.40ft container:(Length limted 11.8m MAX)
By air
UPS/DHL/FEDEX
By truck
as customer ruquests

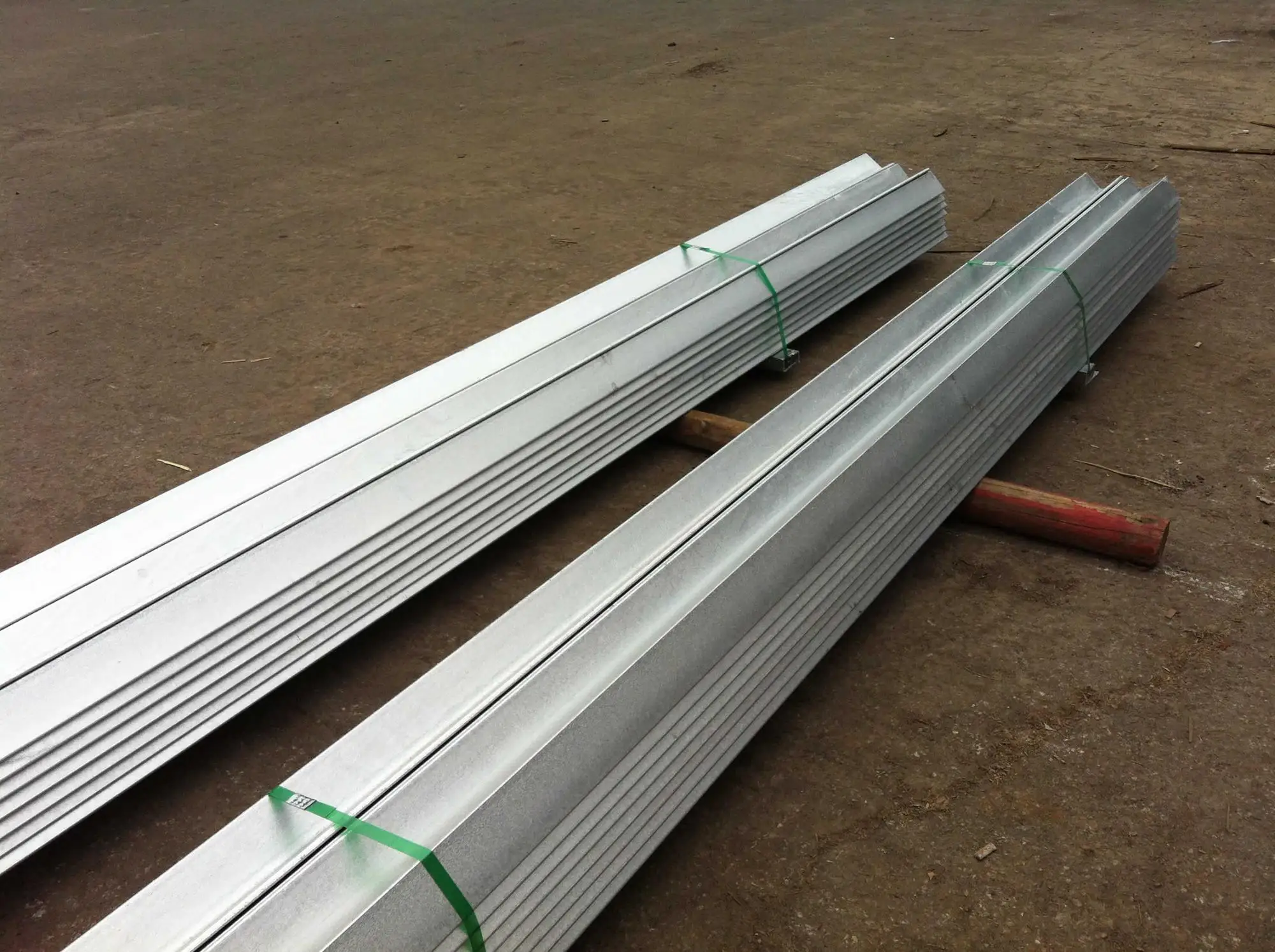

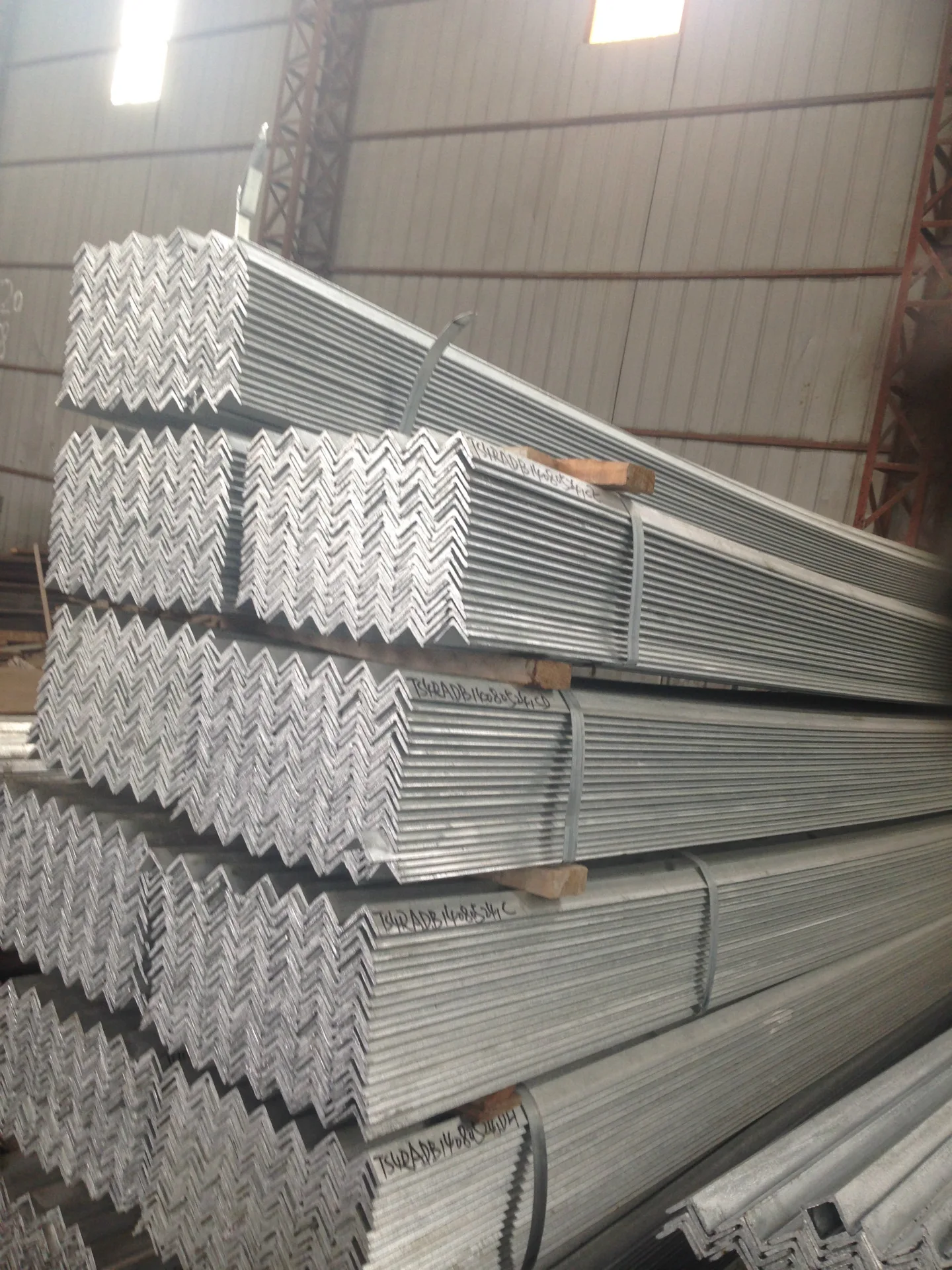

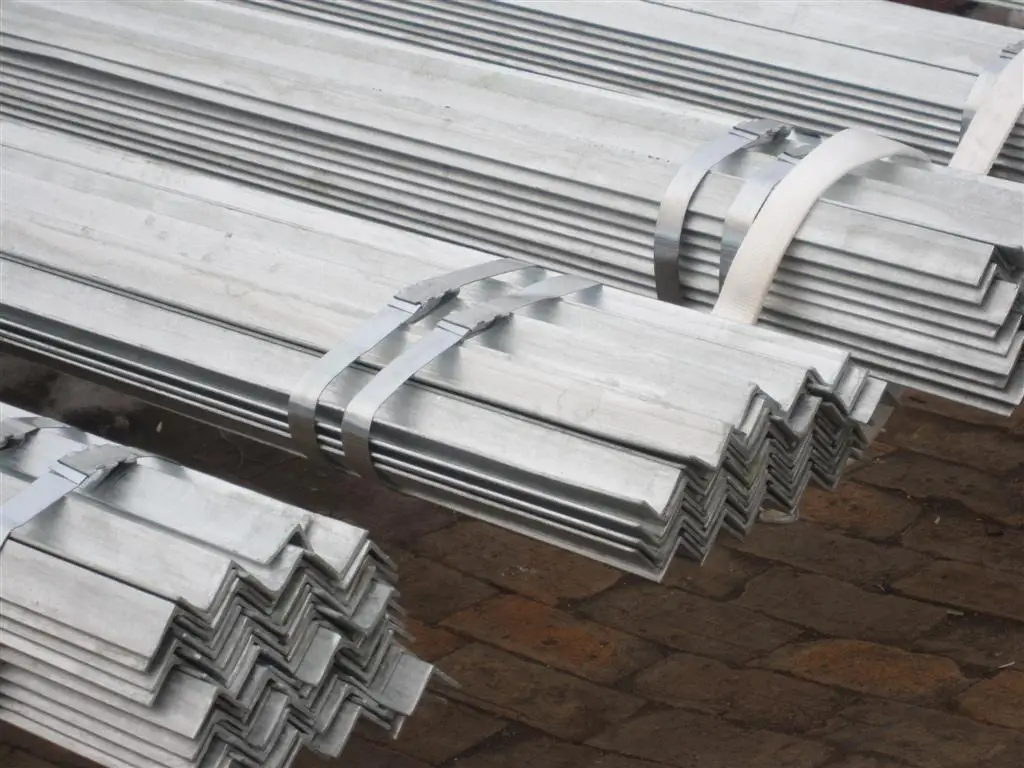

Products Show










Mill and Warehouse







Staff&Clients







Certificats





Our Service



*OEM and Customer drawing is acceptable.
*Sample is available
*Labels, Logo Spraying and packaging customized according to your need.
* Flexible Payment term
* Good & Prime quality materials
* Small & mix size oder is acceptable
* Fast & On time delievery
* Fast reply in everything and always
* Schdule Report (Keep u knw all status of the order)
* Rich experience



FAQ

Q1. Are you trading company or manufacturer ?
A: We are processing factory. our factory locates in Songjiang Steel City. if you would like to visit our factory, just inform us in advance, we will pick you up at the airport. we warmly welcome all of our clients to visit us.

Q2: How long is your delivery time?
A: Generally, it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply free samples if we have ready parts in stock, but the courier cost are charged.
